hey anyone please publish the seat layout of garib rath chaircar indicating seat numbers with window. if there's already a link, please publish the url in reply. thank you.

vsp27759 · May 4th, 2009, 17:10

Dear Viswanath,

I cannot draw a picture, but I can only explain the lay-out.
-----
There are 102 Seats in GR.AC.Chair Car.
.....
These 102 seats are divided into two halves.
....
In the first half, there will be 54 Seats (9rows & each row consisting 6 seats, that is, 3x3). In the second half, there will be 48 Seats (8 rows & each row consisting 6 seats, that, 3x3)
....
This coach will have 3 doors, facing the Platform.

somnath biswas · May 4th, 2009, 17:24

Here it is.

http://www.trainweb.org/railworld/Coach/

vsp27759 · May 4th, 2009, 18:06

Dear Somnath,

##The Layout of GR.AC.Chair Car has not been provided by Prakash Tendulkar, who is a prominent IRFCian. Presumably, when he has drawn these Charts, the GR must not be in existence!!!

##Please go through the Second Seating Arrangement where 108 seats have been provided.

##Now, out of this,

i) remove the last row, it becomes 102 seats.

ii) provide an entrance door on both sides of the coach between
43-48 & 49-54.

iii) put Airconditioning Equipment

iv) put Green Colour with yellow stripes on the exterior of the coach;

You will get the GR.AC.Chair car!!!

machadinha · May 4th, 2009, 18:53

Quote:

Originally Posted by vkviswanath

hey anyone please publish the seat layout of garib rath chaircar indicating seat numbers with window. if there's already a link, please publish the url in reply. thank you.

It so happens Steven_Ber is working on something just like that, for all the various classes: Carriage layout diagrams, PLEASE give feedback.

So, keep an eye out for his posts I guess; it will no doubt appear in this Railways forum once it's ready.

vkviswanath · May 4th, 2009, 22:34

Quote:

Originally Posted by vsp27759

Dear Viswanath,

I cannot draw a picture, but I can only explain the lay-out.
-----
There are 102 Seats in GR.AC.Chair Car.
.....
These 102 seats are divided into two halves.
....
In the first half, there will be 54 Seats (9rows & each row consisting 6 seats, that is, 3x3). In the second half, there will be 48 Seats (8 rows & each row consisting 6 seats, that, 3x3)
....
This coach will have 3 doors, facing the Platform.

thanks for the help

steven_ber · May 5th, 2009, 00:03

Quote:

Originally Posted by somnath biswas

Here it is.

http://www.trainweb.org/railworld/Coach/

He has just scanned the Indian Railway produced seat/berth layout, and most of them are wrong.

steven_ber · May 5th, 2009, 00:55

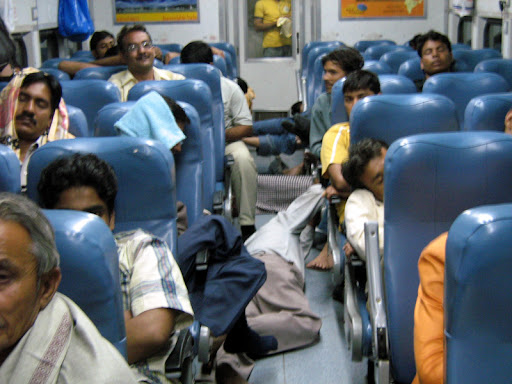

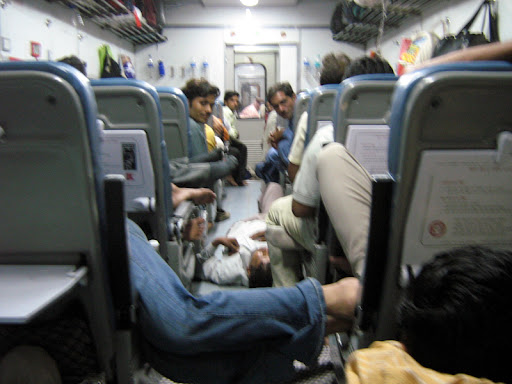

Garib Rath, chair class, what a way to travel overnight.

http://lh3.ggpht.com/_B0GlORJTZlg/Rx...U/IMG_4417.jpg

http://lh4.ggpht.com/_B0GlORJTZlg/Rx...Q/IMG_4418.jpg

.

steven_ber · May 5th, 2009, 03:12

Quote:

Originally Posted by vsp27759

Dear Viswanath,

I cannot draw a picture, but I can only explain the lay-out.
-----
There are 102 Seats in GR.AC.Chair Car.
.....
These 102 seats are divided into two halves.
....
In the first half, there will be 54 Seats (9rows & each row consisting 6 seats, that is, 3x3). In the second half, there will be 48 Seats (8 rows & each row consisting 6 seats, that, 3x3)
....
This coach will have 3 doors, facing the Platform.

Quote:

Originally Posted by vsp27759

Dear Somnath,

##The Layout of GR.AC.Chair Car has not been provided by Prakash Tendulkar, who is a prominent IRFCian. Presumably, when he has drawn these Charts, the GR must not be in existence!!!

##Please go through the Second Seating Arrangement where 108 seats have been provided.

##Now, out of this,

i) remove the last row, it becomes 102 seats.

ii) provide an entrance door on both sides of the coach between
43-48 & 49-54.

iii) put Airconditioning Equipment

iv) put Green Colour with yellow stripes on the exterior of the coach;

You will get the GR.AC.Chair car!!!

I'll do a seat layout diagram for Garib Rath chair class, but a few things I need to know.

1, have all Garib Rath CC carriages got the same layout and number of seats?

2, what direction do seats 1-48 face, the centre of the carriage or the end of the carriage?

3, what direction do seats 49 - 102 face?

4, I assume seats 1-6 are at one end of the carriage and seats 97 - 102 are at the opposite end of the carriage, is this correct?

5, I assume the central entrance doors lead to a walkway between the entrance doors, are there doors from this walkway leading to each half of the carriage? (to keep both sections air conditioned)

6, are 3 of the toilets Indian style toilet (squat) and the other a western style toilet?

7, Do you know if there are 4 toilets, or if the space normally used for a toilet is used for storage instead? (as the photo at the end of this post could indicate, or is that just one of those slim electrical cupboards)

8, Are the 4 inside doors (into air con sections) sliding doors or push/pull doors? (photo below seems to suggest a sliding door)

http://picasaweb.google.com/hitmomen...05775137861410

steven_ber · May 5th, 2009, 03:54

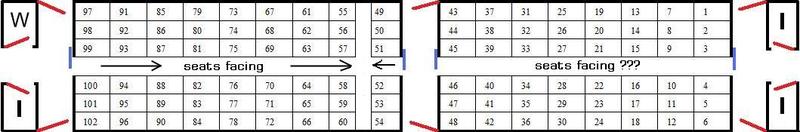

A lot of questions there VSP, so I've done a quick diagram to show how I think the layout will be, I'll do a much better one once I've got all the details.

The blue lines are sliding doors.

Is this correct?

EDIT....just noticed seats 49 - 54 (I think) are facing the other seats.

http://picasaweb.google.com/hitmomen...05513144856322

So I've re-done the diagram.

Is it seats 49 - 54 that are facing the other seats? (it's not 97 - 102, I can see those seats, and the ones in front on another photo, and it seems unlikely the photographer went into the other half of the carriage)

What number seats face the opposite direction in the other half of the carriage? (1 - 6 or 43 - 48)

.

vsp27759 · May 6th, 2009, 10:21

Dear Steven,

##Please look at this:
----

(WINDOW) 37,38,39>>>>40,41,42(WINDOW)
DINING TABLE.....>>>>DINING TABLE
(WINDOW)48,47,46.>>>>>45,44,43 (WINDOW)
+++++++++++++++++sliding door++++++++++++
ENTRANCE...................... .....ENTRANCE
DOOR.......................... .....DOOR
+++++++++++++++++sliding door+++++++++++++++
(WINDOW)49,50,51>>>>>>52,53,54 (WINDOW)
DINING TABLE>>>>>>>>>>DINING TABLE
(WINDOW)60,59,58>>>>>>57,56,55 (WINDOW)

.............................. ...............

##In so far as Toilets, as usual there will be 4 Toilets, but their, I am unable to recollect their 'category' (Western/Indian). I will let you know.

(

vsp27759 · May 6th, 2009, 10:23

Dear Steven,

8, Are the 4 inside doors (into air con sections) sliding doors or push/pull doors?

##Yes, all the 4 inside doors are sliding doors.

steven_ber · May 6th, 2009, 14:32

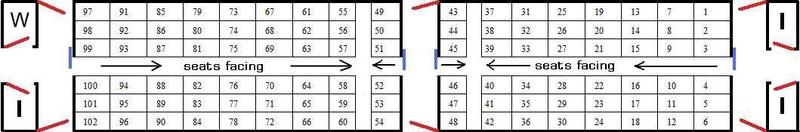

Thanks VSP, so the following diagram has all the seats in the right place, and the seat facing directions corect?

(I'll change the layout to show individual seats when the final diagram is produced)

.

vsp27759 · May 6th, 2009, 14:54

Dear Steven,

##Kindly make an indication about the existence of Dining Tables, as already explained.:-)
